Low Temperature Water Chillers For Medical Process
Water-Cooled Screw Chiller 30Ton to 500 Ton
Temperature Control Range -35℃ to +35℃
Evaporator Type: High Efficiency Shell And Tube
Condenser Type: High Efficiency Shell And Tube
Semi-Hermetic Type Screw Compressor
High Cooling Efficiency, Saving Energy
Cooling Tower, Cooling Pump&Parts One-Station Service
Inquiry Now
Description
Detail Images
Technical Parameters

TAICH pharmaceutical water chillers are reliable cooling solution for pharmaceutical processing with constant cooling output, precise temperature control during pharmaceutical processing.


Pharmaceutical factory have different production process according to different form of final pharmaceutical products, such as blenders, extrusion or hot melt extrusion equipment, mixers, or jacketed vessels. Almost process requires heating, cooling or both during manufacturing, therefore temperature control is one of the most important step during pharmaceutical production and that is why water chiller for pharmaceutical production is the best solution for pharmaceutical processing.


Why pharmaceutical processing required water chillers?

Due to inherent chemical properties of pharmaceuticals, some of them is sensitive to processing time and temperature exposure, therefore pharmaceutical processing needs to be chilled all the time with water chillers to ensure top quality of final products.


What are the benefits to use water chillers for pharmaceutical process?

TAICH pharmaceutical and medical water chillers are optimized for working in chemical and pharmaceutical industry need,  so this is a reliable and economically pharmaceutical cooling solution.


Advantage:

(1). Large cooling capacity;

(2).Precise temperature control, stable cooling output.

(3). All these specification help to reduce the production time, to decrease production cost and to enhance product quality.

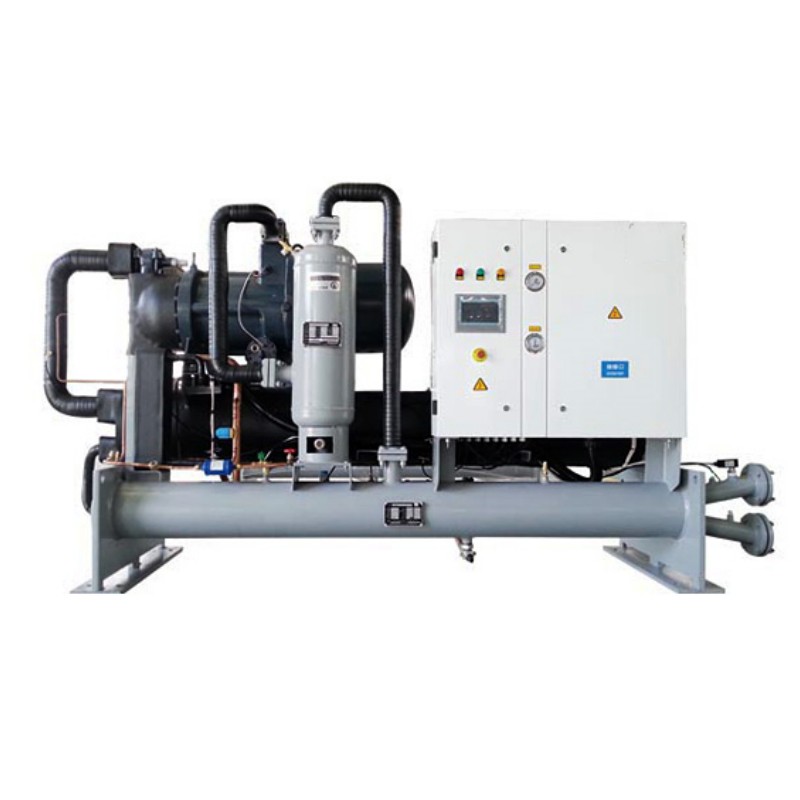

WATER COOLED CHILLER (3).png

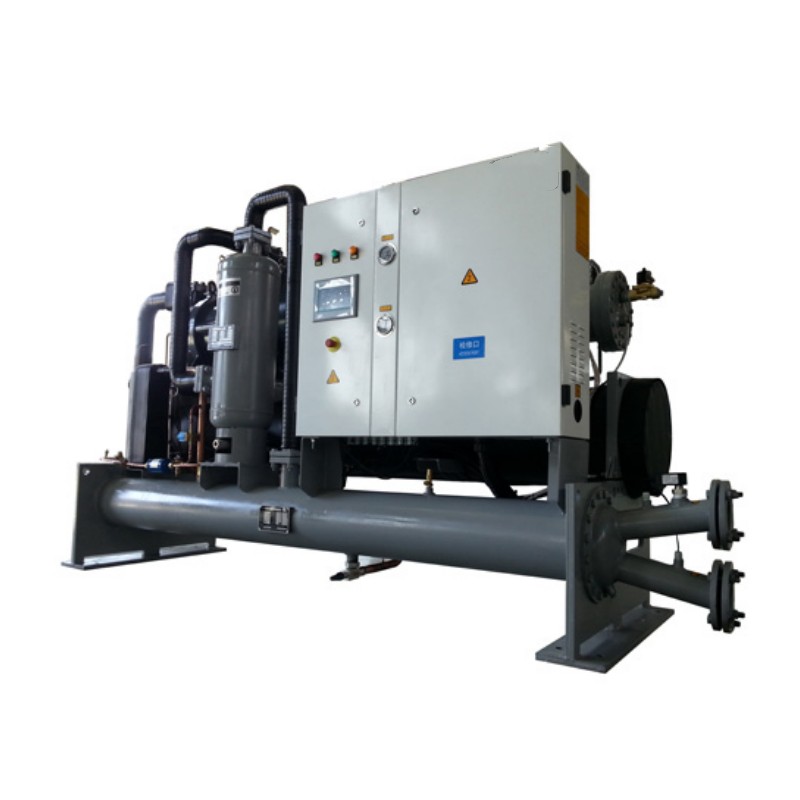

WATER COOLED CHILLER (5).png

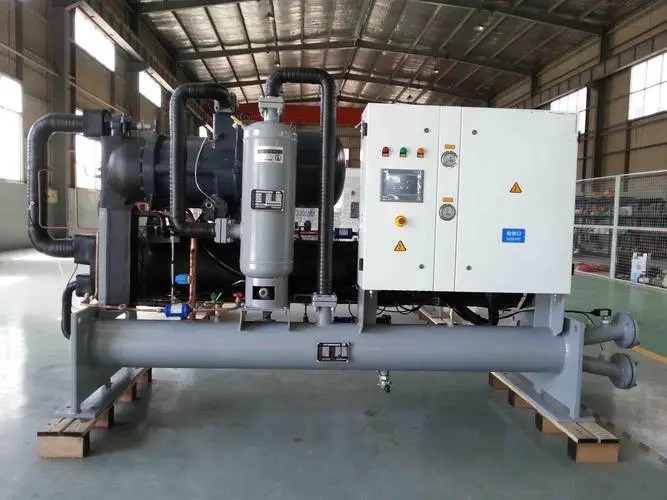

Water Chiller (1).png

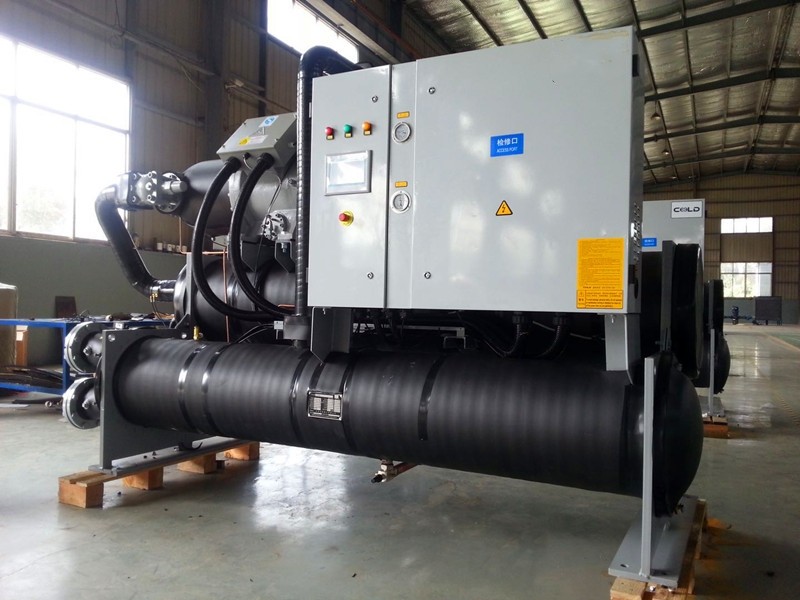

WATER COOLED CHILLER.jpg




Water Cooled Screw Chiller (Single System)
 ModelTC-90WTC-125WTC-165WTC-180WTC-220WTC-300WTC-350WTC-500WTC-600WTC-650WTC-750WTC-800W
Cooling capacityAt -15℃ Outlet (Kw)45608085116141170235280295340370
At -20℃ Outlet (Kw)3548657095115140191232240282303
At -25℃ Outlet (Kw)283951557685112150181190223241
 Power Supply3PH-380V-50Hz
RefrigerantTypeR22
ControlThermostatic expansion valve
CompressorTypeSemi-closed screw type
Power(Kw)21.428.235.438.849.063.076.098.0123.0127.0149.0160.0
StartY-△
 Capacity25-50-75-100(%) or 25-100(%)
EvaporatorType High efficiency copper tube shell and tube type
At -15℃ OutletWater Flow(m3/h)7.710.313.714.619.924.229.140.348.050.658.363.4
At -20℃ OutletWater Flow(m3/h)6.08.211.112.016.319.724.032.739.841.148.351.9
At -25℃ OutletWater Flow(m3/h)4.86.78.79.413.014.619.225.731.032.638.241.3
Inlet/OutletDN50DN65DN80DN80DN80DN80DN100DN100DN100DN100DN125DN125
Condenser Type High efficiency threaded copper tube shell and tube type
Cooling Water Flow(m3/h)1317222331384663768092100
Inlet/OutletDN50DN65DN80DN80DN80DN80DN100DN100DN100DN100DN125DN125
 Protection SystemCompressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension      L(mm)230023002500250025002800320035003500350038003800
      W(mm)7507507507508008008009009009009001200
      H(mm)150015001500150015001500150015001800180018001800
 WeightKg66070080097510001150125016001750175018502000
